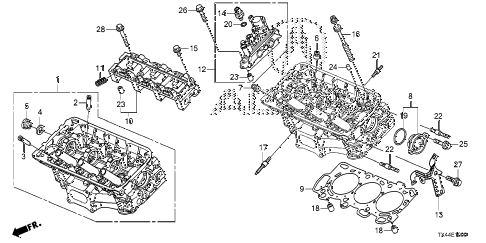

2015 RDX BASE2WD 5 DOOR 6AT FRONT CYLINDER HEAD (1) diagram
Back to Top
cylinder head assy., fr.guide, valve (over size)guide, ex. valve (over size)washer, sealing boltbolt, sealing (28mm)seal a, valve stem (nok)seal b, valve stem (nok)cover assy., fr. camshaft thrustgasket, fr. cylinder head (nippon leakless)bridge, rocker shaftbridge, rocker shaftmotion, lostvalve assy., fr. spoolstay, fr. laf connectorswitch assy., oil pressurebolt, sealing (10mm)bolt-washer (12x163)bolt, stud (8x41)pin, dowel (16x22)pin, dowel (16x22)o-ring (48.5x2.4)o-ring (13x1.5)bolt, stud (8x25)bolt, stud (8x32)bolt, stud (8x32)pin, dowel (10x12)pin, dowel (10x12)pin b, dowel (8x10)bolt, flange (8x28)bolt, flange (8x40)bolt, flange (10x16)bolt, flange (8x60)
