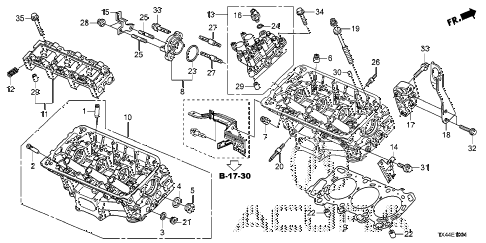

2015 RDX BASE2WD 5 DOOR 6AT REAR CYLINDER HEAD (1) diagram
Back to Top
guide, valve (over size)guide, ex. valve (over size)washer, sealing (16mm)washer, sealing boltbolt, sealing (28mm)seal a, valve stem (nok)seal b, valve stem (nok)cover assy., rr. camshaft thrustgasket, rr. cylinder head (nippon leakless)cylinder head assy., rr. (dot)bridge, rocker shaftbridge, rocker shaftmotion, lostvalve assy., rr. spoolstay f, engine harnessstay, purge control solenoidswitch assy., oil pressurebracket, rr. power steering pumpplate, engine hangerbolt-washer (12x163)bolt, stud (8x41)bolt, sealing (16mm)pin, dowel (16x22)pin, dowel (16x22)o-ring (48.5x2.4)o-ring (13x1.5)bolt, stud (6x12)bolt, stud (6x12)bolt, stud (8x25)bolt, stud (8x32)bolt, stud (8x32)nut, flange (6mm)pin, dowel (10x12)pin, dowel (10x12)pin b, dowel (8x10)bolt, flange (8x16)bolt, flange (8x22)bolt, flange (8x28)bolt, flange (8x28)bolt, flange (8x40)bolt, flange (8x60)
