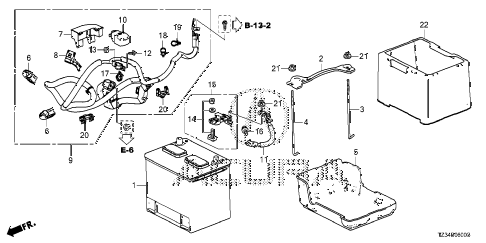

2015 TLX TECH2.4 4 DOOR DCT BATTERY (1) diagram
Back to Top
battery (gr35/470cca)plate, battery setting (70d)bolt, battery setting (210mm)bolt, battery setting (235mm)box, battery (70d)holder, corrugated (13mm) (dark green)holder, corrugated (13mm) (dark green)holder, starter cableholder, starter cable (13mm) (black)cable assy., startercover, battery terminalcable assy., battery groundbolt, battery terminalnut, battery terminalhardware, ground terminalsensor assy., batterybolt, ground (6x16)clip a, harness band (129.4mm)(dark violet)clip, harness band (155.3mm) (black)clip, harness band (164.5mm) (dark blue)clip, band harness (18) (101.5mm) (black)clip, band harness (18) (101.5mm) (black)nut, flange (6mm)nut, flange (6mm)nut, flange (6mm)cover, battery (70d)
