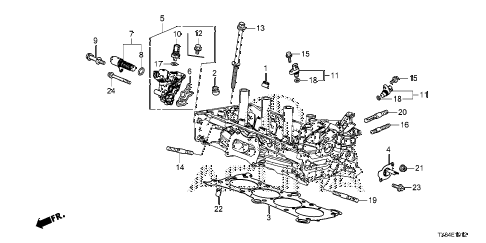

2016 ILX TECHPLUS A-SPEC 4 DOOR DCT SPOOL VALVE (2.4L) (2) diagram
Back to Top
seal a, valve stem (nok)seal b, valve stem (nok)gasket, cylinder headcover, camshaft holdervalve assy., spoolfilter assy., spool valvevalve assy., vtc oil controloil seal, control valvebolt, vtc solenoidswitch assy., valve timing oilpressuresensor assy., tdcsensor assy., tdcbolt-washer (11x176)bolt, stud (8x25)bolt, special (6x20.5) (guide)bolt, special (6x20.5) (guide)bolt, flange (6x16)bolt, flange (6x16)bolt, stud (6x18)o-ring (13x1.5)o-ring (15x1.9)o-ring (15x1.9)bolt, stud (8x25)bolt, stud (8x32)nut, flange (6mm)pin, dowel (14x20)bolt, flange (6x14)bolt, flange (6x50)
