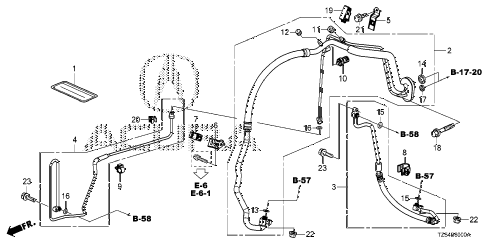

2016 MDX BASEAWP 5 DOOR 9AT A/C AIR CONDITIONER (HOSES/PIPES) diagram
Back to Top
label, air conditioner informationhose assy., suctionhose, dischargepipe, receiverstay a, air conditioner pipestay b, air conditioner pipeclip, air conditioner pipeclip, discharge hoseclip, receiver pipesensor assy., pressure (sensata)cap, valve (h)cap, valve (l)o-ring (5/8")seal (5/8")o-ring (1/2")o-ring (1/2")o-ring (8mm)o-ring (8mm)seal (8mm)bolt, flange (8x42) (guide)clip, air conditioner pipeclip, receiver pipebolt-washer (6x12)nut, flange (6mm)nut, flange (6mm)bolt, flange (6x25)bolt, flange (6x25)
