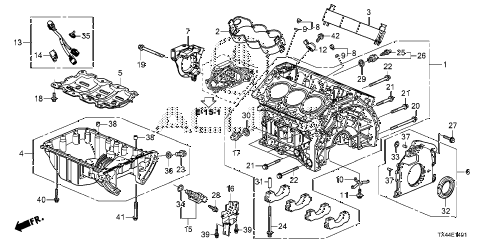

2016 RDX ADVAWD 5 DOOR 6AT CYLINDER BLOCK - OIL PAN (2) diagram
Back to Top
block assy., cylinderspacer, cooling control (fr)spacer, cooling control (rr)pan, oilplate, bafflecase assy., oil sealbracket, engine side mountingorifice assy., oil controlorifice assy., oil controlo-ring (8.8x2.4)o-ring (8.8x2.4)body, oil jetbolt, oil jetsensor, knockharness, knock sensor subcover, rr. (wpc 2p 040 f)sensor assy., crankcover, crank sensorbolt, drain plug (28mm)bolt-washer (6x15)bolt, flange (10x75)bolt-washer (10x109)bolt-washer (10x60)bolt-washer (10x60)bolt-washer (10x60)bolt-washer (10x80)bolt-washer (10x80)bolt, plug (14mm)bolt-washer (11x105)bolt, breathingbolt, drain plugbolt, flange (6x22)bolt, flange (6x20.5) (guide)washer, drain (18mm)washer, sealing (28mm)pin, dowel (13x37)oil seal (80x98x8) (nok)o-ring (26.2x2.4) (yamada somboon)o-ring (15x1.9)clip a, harness band (129.4mm)(dark violet)washer, drain plug (14mm)pin, dowel (6x10)pin, dowel (6x10)pin, dowel (8x14)pin, dowel (8x14)bolt, flange (6x14)bolt, flange (6x14)bolt, flange (6x32)bolt, flange (6x50)bolt, flange (8x32)
