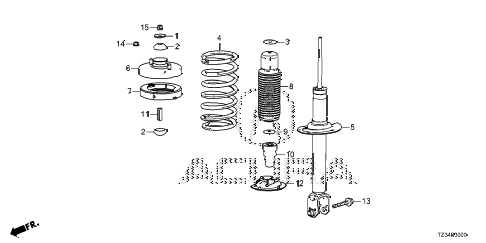

2018 TLX 24BASEL4 4 DOOR DCT REAR SHOCK ABSORBER diagram
Back to Top
washer, shock absorber mountingrubber, shock absorber mounting (showa)rubber, shock absorber mounting (showa)plate, dust cover (showa)spring, rr.shock absorber unit, rr.base, rr. shock absorber mountingrubber, rr. spring mountingcover, dustplate, bump stoprubber, rr. bump stopcollar, shock absorber mountingcover, rr. mount dust (lower)bolt, flange (12x80)nut, shock absorber flange (10mm)nut, self-lock (10mm) (nylon) (showa)
