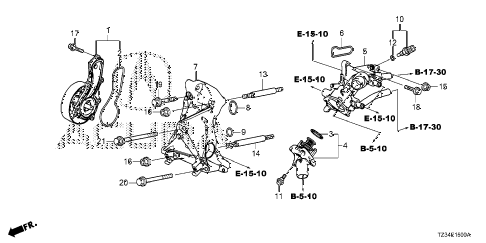

2018 TLX 24BASEL4 4 DOOR DCT WATER PUMP (1) diagram
Back to Top
water pumpgasket, water pumpseal, thermostat cover (nippon thermostat)cover assy., thermostat (nippon thermostat)case, thermostatseal, thermostat casepassage, watero-ring, water passage (water)o-ring, water passage (oil)sensor assy., water temperature (panasonic)bolt, special (6x19) (meira)o-ring (9.5x1.9) (panasonic)bolt, stud (10x60)bolt, stud (10x100)nut, flange (8mm)nut, flange (10mm)nut, flange (10mm)bolt, flange (6x25)bolt, flange (8x30)bolt, flange (10x70)bolt, flange (10x105)bolt, flange (10x140)
