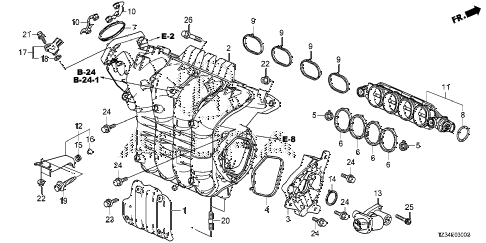

- 1. cover, in. manifold
- 2. manifold, in.
- 3. cover, bypass valve
- 4. gasket, bypass valve cover
- 5. gasket b, bypass valve
- 6. gasket a, bypass valve
- 7. gasket, throttle body
- 8. o-ring (31.2x3.5)
- 9. gasket a, in. manifold
- 10. plate, throttle flange
- 11. valve assy., bypass
- 12. stay assy., in. manifold
- 13. actuator assy., bypass valve
- 14. gasket, bypass valve actuator
- 15. rubber, in. manifold stay mounting
- 16. collar, in. manifold stay
- 17. sensor assy., map
- 18. o-ring
- 19. bolt-washer, special (8x35)
- 20. bolt, stud (8x22)
- 21. bolt-washer (5x20)
- 22. nut, flange (8mm)
- 23. bolt, flange (6x16)
- 24. bolt, flange (6x18)
- 25. bolt, socket (6x20)
- 26. bolt, flange (8x35)
001
cover, in. manifold17020-RDF-A01
Part Number: 17020-RDF-A01''
KA - US - 49 State Spec- $50.95
002
manifold, in.17100-RDF-A01
Part Number: 17100-RDF-A01''
KA - US - 49 State Spec- $421.35
003
cover, bypass valve17101-RDF-A01
Part Number: 17101-RDF-A01''
KA - US - 49 State Spec- $62.58
004
gasket, bypass valve cover17102-RNA-A01
Part Number: 17102-RNA-A01''
KA - US - 49 State Spec- $20.95
005
gasket b, bypass valve17103-RNA-A01
Part Number: 17103-RNA-A01''
KA - US - 49 State Spec- $8.18
006
gasket a, bypass valve17104-RDF-A01
Part Number: 17104-RDF-A01''
KA - US - 49 State Spec- $7.65
007
gasket, throttle body17107-R40-A01
Part Number: 17107-R40-A01''
KA - US - 49 State Spec- $4.72
008
o-ring (31.2x3.5)17108-RNA-A01
Part Number: 17108-RNA-A01''
KA - US - 49 State Spec- $12.92
009
gasket a, in. manifold17115-5A2-A01
Part Number: 17115-5A2-A01''
KA - US - 49 State Spec- $4.33
010
plate, throttle flange17116-5A2-A00
Part Number: 17116-5A2-A00''
KA - US - 49 State Spec- $10.32
011
valve assy., bypass17120-RDF-A01
Part Number: 17120-RDF-A01''
KA - US - 49 State Spec- $186.18
012
stay assy., in. manifold17132-5A2-A00
Part Number: 17132-5A2-A00''
KA - US - 49 State Spec- $26.15
013
actuator assy., bypass valve17150-RNA-A01
Part Number: 17150-RNA-A01''
KA - US - 49 State Spec- $222.70
014
gasket, bypass valve actuator17153-RCA-A01
Part Number: 17153-RCA-A01''
KA - US - 49 State Spec- $4.38
015
rubber, in. manifold stay mounting17212-5A2-A00
Part Number: 17212-5A2-A00''
KA - US - 49 State Spec- $6.10
016
collar, in. manifold stay17216-5A2-A00
Part Number: 17216-5A2-A00''
KA - US - 49 State Spec- $5.67
017
sensor assy., map37830-RNA-A01
Part Number: 37830-RNA-A01''
KA - US - 49 State Spec- $80.47
018
o-ring37835-PGK-A01
Part Number: 37835-PGK-A01''
KA - US - 49 State Spec- $8.78
019
bolt-washer, special (8x35)90005-5A2-A00
Part Number: 90005-5A2-A00''
KA - US - 49 State Spec- $1.03
020
bolt, stud (8x22)92900-08022-0B
Part Number: 92900-08022-0B''
KA - US - 49 State Spec- $1.83
021
bolt-washer (5x20)93403-05020-08
Part Number: 93403-05020-08''
KA - US - 49 State Spec- $1.37
022
nut, flange (8mm)94050-08080
Part Number: 94050-08080''
KA - US - 49 State Spec- $0.78
023
bolt, flange (6x16)95701-06016-08
Part Number: 95701-06016-08''
KA - US - 49 State Spec- $1.35
024
bolt, flange (6x18)95701-06018-08
Part Number: 95701-06018-08''
KA - US - 49 State Spec- $1.38
025
bolt, socket (6x20)96600-06020-08
Part Number: 96600-06020-08''
KA - US - 49 State Spec- $1.20
026
bolt, flange (8x35)95701-08035-08
Part Number: 95701-08035-08''
KA - US - 49 State Spec- $1.30
-
