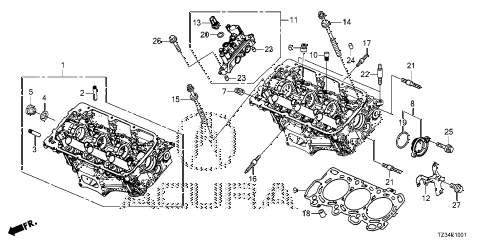

2019 TLX TECH+AA-SPEC,AWD,19,R 4 DOOR 9AT FRONT CYLINDER HEAD diagram
Back to Top
cylinder head assy., fr.guide, valve (over size)guide, ex. valve (over size)washer, sealing boltbolt, sealing (28mm)seal a, valve stem (nok)seal b, valve stem (nok)cover assy., fr. camshaft thrustgasket, fr. cylinder head (nippon leakless)motion, lostvalve assy., fr. spoolstay, fr. laf connectorswitch assy., valve timing oilpressurebolt-washer (12x188)bolt-washer (12x163)bolt, stud (8x41)bolt, stud (6x18)pin, dowel (16x22)o-ring (48.5x2.4)o-ring (13x1.5)bolt, stud (8x32)bolt, stud (8x32)bolt, stud (8x45)pin, dowel (10x12)pin, dowel (10x12)pin b, dowel (8x10)bolt, flange (8x28)bolt, flange (8x40)bolt, flange (10x16)
