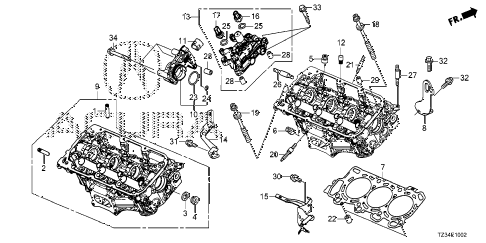

2019 TLX TECH+AA-SPEC,AWD,19,R 4 DOOR 9AT REAR CYLINDER HEAD diagram
Back to Top
guide, valve (over size)guide, ex. valve (over size)washer, sealing boltbolt, sealing (28mm)seal a, valve stem (nok)seal b, valve stem (nok)gasket, rr. cylinder head (nippon leakless)hanger, enginecylinder head assy., rr. (dot)housing assy., rr. pumplifter, pumpmotion, lostvalve assy., rr. spoolstay, purge jointstay, rr. laf connectorswitch assy., oil pressureswitch assy., valve timing oilpressurebolt-washer (12x188)bolt-washer (12x163)bolt, stud (8x41)bolt, stud (6x18)pin, dowel (16x22)o-ring (48.5x2.4)o-ring (17.2x1.9)o-ring (13x1.5)o-ring (13x1.5)bolt, stud (8x32)bolt, stud (8x45)pin, dowel (10x12)pin, dowel (10x12)pin, dowel (10x12)pin b, dowel (8x10)bolt, flange (8x16)bolt, flange (8x18)bolt, flange (8x22)bolt, flange (8x22)bolt, flange (8x40)bolt, flange (8x70)
