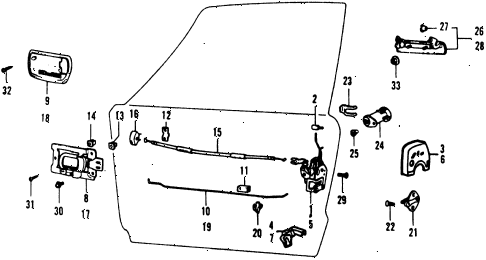

1977 civic **(1200) 3 DOOR 4MT DOOR LOCK diagram
Back to Top
lock, r. fr. doorjointlock, l. fr. doorhandle assy., r. insiderod, r. lock knobcushion, lock rodbracket, inside cablegrommet, screw (6mm)grommet, screw (4mm)cable, fr. inside handleretainer, door lock cable rubberhandle assy., l. insiderod, l. lock knobclip, door cablebolt, lock strikerspring, lock key settingcylinder, fr. doorbush, cylinder rodhandle assy., r. (outer)bush, handle joint (outer)bush, handle joint (outer)handle assy., l. (outer)screw-washer (5x10)screw, tapping (4x16)screw, tapping (5x10)nut, flange (6mm)
