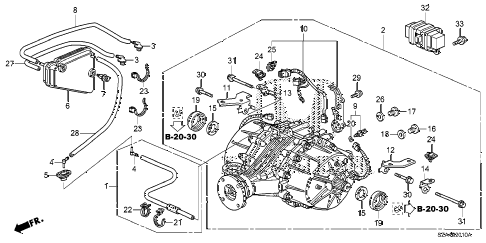

2015 pilot EX-L(4WD/LEA/NAVI) 5 DOOR 5AT REAR DIFFERENTIAL - MOUNT diagram
Back to Top
tube assy., breathercarrier assy., rr. differentialbody assy., breather endbody assy., breather endjoint, breather tubejoint, breather tubegrommet, breather jointbox, breatherclip, breather boxtube a, breathersensor, oil temperaturesub-cable assy., r. rr. differentialstay a, rr. differential cablestay b, rr. differential cablestay c, rr. differential cablestay d, rr. differential cablewasher, thrustwasher, thrustbolt, plug (18mm)bolt, drain plug (20mm)washer, drain plug (18mm)dust seal (40x55x7.5)dust seal (40x55x7.5)o-ring (11.5x1.5)clip b, harness band (129.4mm)(dark brown)clip, harness band (151.5mm) (natural)clip, band (160mm) (natural)clip, band (160mm) (natural)clip, connector (natural)clip, connector (natural)clip, connector (dark green)washer, drain plug (20mm)bulk hose, vacuum (4.5x1000)bolt, flange (6x16)bolt, flange (8x35)bolt, flange (8x35)bolt, flange (8x75)bolt, flange (8x75)damper, rr. differential massbolt, flange (8x20)
