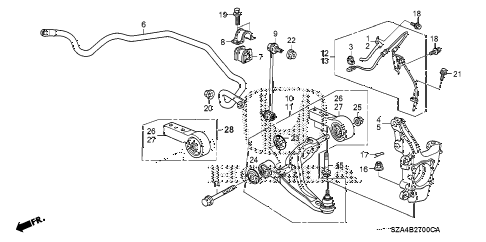

2015 pilot EX-L(4WD/LEA/NAVI) 5 DOOR 5AT FRONT KNUCKLE diagram
Back to Top
clamp a, r. wireclamp a, l. wireclip, connector (black)knuckle, r. fr.knuckle, l. fr.spring, fr. stabilizerbush, stabilizer holderbracket, stabilizerlink assy., fr. stabilizerarm, r. fr. (lower)arm assy., l. fr. (lower)sensor assy., r. fr.sensor assy., l. fr.bolt, flange (16x100)bolt, flange (14x68)nut, castle (14mm)pin, split (m14)bolt-washer (6x12)bolt-washer (6x12)bolt-washer (10x25)nut, flange (12mm)bolt, flange (6x12)nut, flange (12mm)stopper, fr. arm (lower) (rr)stopper, fr. arm (lower)nut, self-lock (16mm) (clinch)bracket, r. fr. (lower arm) (compliance bush. & bracket)bracket, r. fr. (lower arm) (compliance bush. & bracket)bracket, l. fr. (lower arm) (compliance bush. & bracket)bracket, l. fr. (lower arm) (compliance bush. & bracket)
