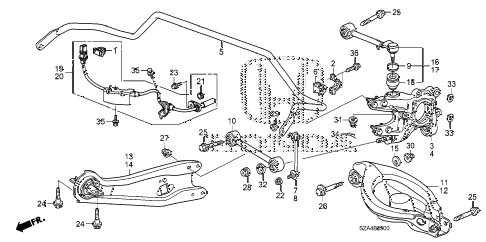

2015 pilot EX-L(4WD/LEA/NAVI) 5 DOOR 5AT REAR LOWER ARM diagram
Back to Top
clip, connector (black)bracket, stabilizerknuckle, r. rr.knuckle, l. rr.spring, rr. stabilizerbush, rr. stabilizer holderlink, r. rr. stabilizerlink, l. rr. stabilizercirclip, control armarm a, rr. (lower)arm b, r. rr. (lower)arm b, l. rr. (lower)arm, r. rr. trailingarm, l. rr. trailingplate, camarm assy., r. rr. (upper)arm assy., l. rr. (upper)boot, rr. dust (upper)sensor assy., r. rr. abssensor assy., l. rr. absseal, abs sensor (black)nut, flange (10mm)bolt, flange (6x16.5)bolt, flange (14x60)bolt, flange (14x60)bolt (14x81)bolt (14x81)bolt (14x81)bolt b, arm adjust (lower)nut, self-lock (12mm) (clinch)nut, self-lock (14mm) (clinch)nut, self-lock (10mm)nut, self-lock (14mm) (nylon)nut, castle (12mm)washer, arm (lower)washer, rr. knucklewasher, rr. knuckleclip, arm (upper)bolt-washer (6x12)bolt-washer (6x12)bolt-washer (10x20)
